Corrosion Tests
In our laboratory we carry out corrosion tests in order to verify the resistance of materials and surface finishes to corrosive effects. These tests are essential for assessing the service life of products and their reliability in various environments, whether ordinary climatic conditions or aggressive industrial environments.
-
Over 30 years of experiencein the supply & service of testing technology
-
Warranty & post-warranty servicefor our own and competitors' equipment
-
Training of your employeesto increase their expertise
-
Accredited laboratoriesfor external tests and calibrations
Types of corrosion tests
Corrosion tests simulate the conditions to which materials may be exposed during their service life. In our laboratory we offer the following types of tests:
- Salt spray tests – tests suitable for evaluating protective coatings and materials in aggressive environments.
- Condensation tests – simulation of a humid environment with water condensing on the sample surface, which makes it possible to assess resistance to humidity and condensation.
- Cyclic corrosion tests – a combination of various corrosive environments, temperatures and humidity in cycles that better mimic real conditions, for example for the automotive industry.
We'll be happy to advise you.
Ing. Radek Lovětínský
Head of the testing laboratory
What our laboratory offers
In our laboratory we carry out corrosion tests according to standards as well as the customer’s specific requirements. During the test, the tested samples can be actively powered, controlled or have their response measured in real time. We record the course of the test using the S!MPATI software.
Scope of tests
- Corrosion chambers with a volume of up to 1 000 l
- Option to combine tests with a climatic chamber
- Salt spray tests up to a temperature of +50 °C
- Condensation tests up to a temperature of +42 °C
- Customer presence directly at the test
What We Test for You

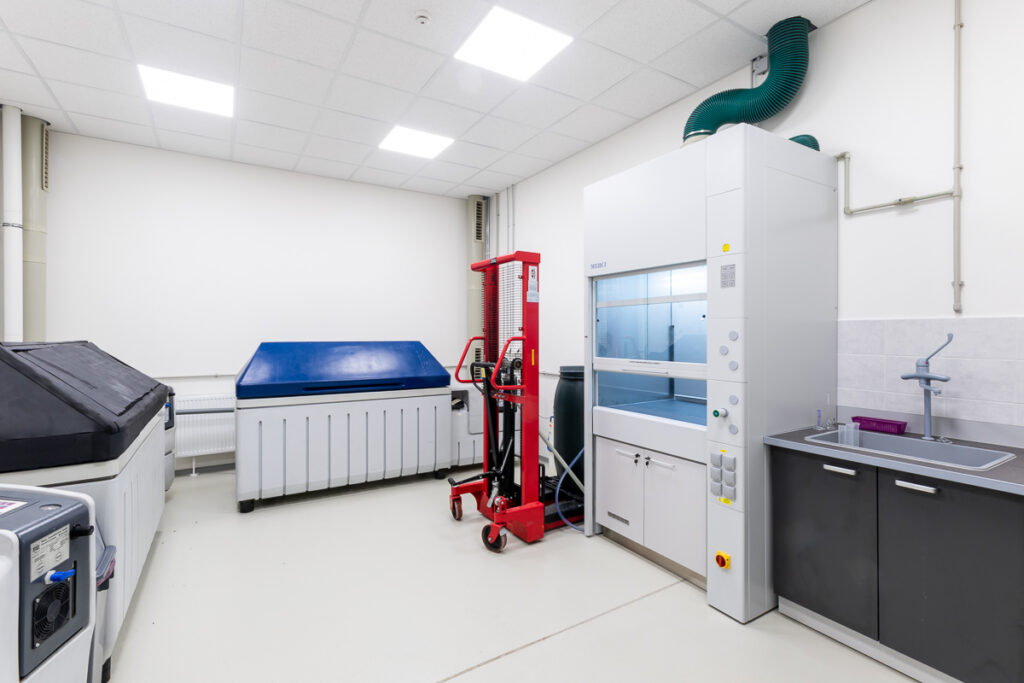

VW80000 standard
We are able to test your samples in accordance with this automotive standard (formerly LV124), according to the selected categories M-04, M-05 and M-06.

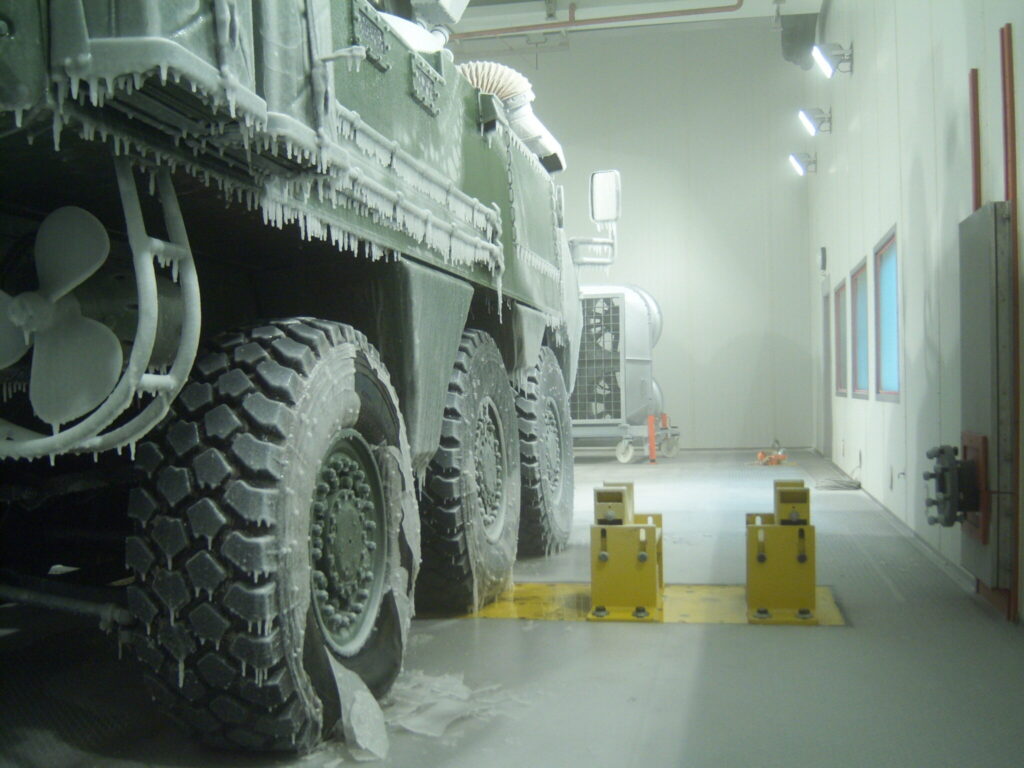

MIL-STD 810 standard
We are able to test products for the defence industry in accordance with the MIL-STD 810 standard Method 509.
PV1210 standard
A standard for testing automotive parts that combines a salt spray test, a condensation test and a "normal" climate under conditions of 23 °C and 50% r. h.
Accredited testing laboratory
We are accredited by the Czech Accreditation Institute in accordance with the ČSN EN ISO/IEC 17025:2018 standard in the field of external environment simulation.
This accreditation is official recognition that the testing laboratory meets the international requirements for:
Technical competence
the ability to perform tests or accurate and reliable measurements according to international standards
Quality management system
ensuring the consistency, traceability and credibility of results
Accredited standards
- ČSN EN ISO 9227, NSS method – Salt spray test
- ČSN EN 60068-2-52, ed.2 – Corrosion test in a condensation atmosphere
- ČSN EN IEC 6270-2 – Combined corrosion test
- VW PV 1210 – Combined corrosion test
- ČSN EN IEC 60068-2-11 – Combined corrosion test
How Does It All Work?
-
1
Non-binding inquiry
Tell us your testing requirements (e.g. via the inquiry form, email or phone).
-
2
Consultation & requirements specification
We contact you and clarify the test specification and timeline.
-
3
Price quotation
You receive a structured price quotation from us.
-
4
Ordering
After your order we reserve the date and capacity.
-
5
Delivery of samples
You deliver the samples to us in person or by courier.
-
6
Performing the test
We carry out the test on the reserved date.
-
7
Preparing the test report
After the test we send the test report electronically.
-
8
Follow-up support
We'll gladly go through the test results with you.
Words From Our Clients
„JD Dvořák — a company where the impossible does not exist and where it is not only about work. I am glad to have the honour of working with JD Dvořák.“
Libor Pala
TRL Space Systems s.r.o.
„We have worked with JD Dvořák for a long time in testing, the rental of climatic chambers, and the service and calibration of our equipment. We value the helpfulness and professionalism of the department heads and technicians we are in regular contact with during tests and the work carried out. Our technicians also make use of training in various areas of testing, which provides both an expansion of theoretical knowledge and practical demonstrations.“
Jiri Turek
Google review
„What I greatly appreciate is the personal approach to solving every problem. Whether it concerned specific testing requirements or the need for individual consultation, I was always met with willingness and expert help that led to a smooth and efficient collaboration. For me, JD Dvořák is not only a professional company, but also an excellent partner in research and education.“
„We have worked with JD Dvořák since 2020. Since then we have completed several installations together, and throughout they have provided service and the necessary calibrations, always at the highest professional level. They have also helped us with our special requirements and we can always rely on them. Their approach is not only professional and customer-oriented, but also very human, and the cooperation is always pleasant.“
Jan Špaček
Fresenius Kabi Horatev CZ s.r.o.
„Cooperation with JD Dvořák is at an excellent level, as proven by more than 20 years of trouble-free collaboration.“
Libor Šmíd
TÜV SÜD Czech s.r.o.
„You do good work — thank you for the long-term cooperation.“
Ing. Ivan Vavrík
Bel Power Solutions s.r.o.
„Thank you for the professional cooperation so far. You are a very reliable partner for us.“
Ing. Miloslav Mensinger
Škoda Auto a.s.
Test report
This document contains key information about the tested sample and the course of the test. We provide the report in Czech or English according to your needs.
We issue both an accredited and a non-accredited test report according to customer requirements. The type of report is determined by the chosen testing standard.
- Information about the tested sample
- Place and date of the test
- Equipment used and its calibration status
- Description of the test procedure including laboratory conditions
- Graphical record of the test
- Responsible persons
- Photo documentation of samples before and after the test
Why test with us?
Expertise in the field
Not sure how to test your sample? We'll help. We have years of experience and will recommend the most suitable procedure. And if you already know exactly what you want, we'll be your partner — without unnecessary questions.
Flexibility
Our equipment covers most requirements. If something is missing, thanks to our links with manufacturers of testing technology we can often arrange even specialised equipment outside our laboratory.
Reliability & speed
You can rely on both the equipment and our arrangements. We service and calibrate everything ourselves, so we can react quickly and adapt tests to get you results as soon as possible.
Personal approach
Every job is unique to us. We always try to understand your needs and tailor the service exactly to what you expect.
We'll be happy to advise you.
Ing. Radek Lovětínský
Head of the testing laboratory
Frequently Asked Questions
We carry out standard salt spray tests according to ČSN EN ISO 9227 (NSS), condensation atmosphere according to ČSN EN ISO 6270-2, as well as combined tests including, for example, ČSN EN IEC 60068-2-52. On request we can also verify the manufacturer's specific requirements.
The duration depends on the specific type of test and the assignment. For example, NSS usually takes 96 to 480 hours, while cyclic tests range from days to several weeks. We always agree on a schedule in advance according to your needs.
The 1000 l chamber capacity allows testing of tens to hundreds of samples at once – depending on their size and the type of test. We will help you choose the optimal method of fastening and layout.
For selected standards we supply an accredited report with photo documentation of the samples before and after the test, together with the test conditions. On request we can add a non-accredited analysis of the results according to selected standards.
